Crimped Woven Brass Phosphor Bronze Copper Wire Cloth Mesh

Ask Lasest Price
Brand Name :	YUDA
Model Number :	Brass / copper wire mesh
Price :	Reconsideration
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	200000 Square Meter/ day
Delivery Time :	3-10 day

Add to Cart

Product Details
Company Profile

Crimped Woven Brass Phosphor Bronze Copper Wire Cloth Mesh

Crimped Woven Brass Phosphor Bronze Copper Wire Cloth Mesh

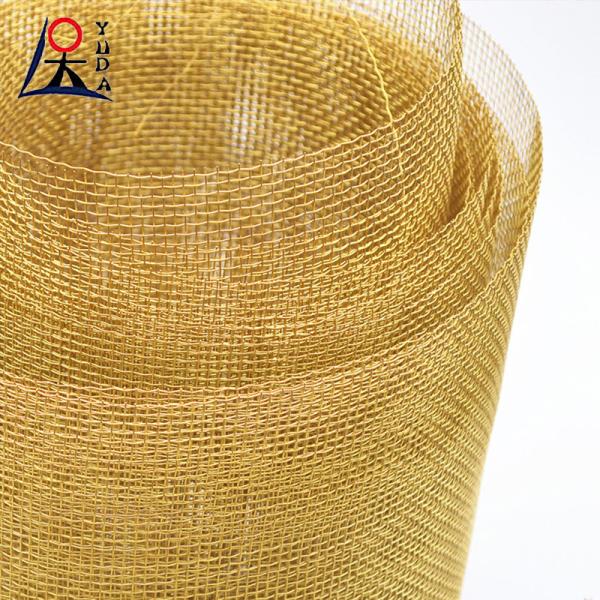

Brass mesh

It is made of copper wires divided by warp and weft. The mesh is generally square. Used for sieving various particles, powder,porcelain clay and glass, porcelain printing, filtering liquid, gas, etc.

Product name:Brass wire mesh (alias: shielding mesh).

Material:brass wire

Features:non-magnetic, wear-resistant, and good ductility

Specification:3 mesh / inch—200 mesh / inch

Weaving:plain weave, twill weave

Uses:Screen all kinds of particles, powder, porcelain clay, glass, porcelain printing, filter liquids and gases

Phosphorus copper mesh

Phosphorus copper mesh is also known as a raw material with excellent value characteristics. It is attributed to tin bronze mesh.It has the advantages of corrosion resistance, acid and alkali resistance, and strong wear resistance and ductility. It can generally be used in special filtration, impurity removal, and production. Together in some shielding, home wall blocking.

Pure Copper Wire Mesh

Material:99.95% pure cu wire

Features: non-magnetic, low ductility, smooth surface, but its conductivity , The abrasion resistance and acid resistance are
worse than the copper mesh. It has proper tensile and extensibility.
Mesh size: 1- 500 mesh
Wire diameter: 0.045-2㎜
Usages: EMI EMF RF Shielding and earthing in telecommunication joints and others in industry.

Mesh/inch	Wire diameter (mm)	Aperture (mm)	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90	40mesh	0.21	0.425
3mesh	1.60	6.866	50mesh	0.19	0.318
4mesh	1.20	5.15	60mesh	0.15	0.273
5mesh	0.91	4.17	70mesh	0.14	0.223
6mesh	0.80	3.433	80mesh	0.12	0.198
8mesh	0.60	2.575	90mesh	0.11	0.172
10mesh	0.55	1.99	100mesh	0.10	0.154
12mesh	0.50	1.616	120mesh	0.08	0.132
14mesh	0.45	1.326	140mesh	0.07	0.111
16mesh	0.40	1.188	150mesh	0.065	0.104
18mesh	0.35	1.060	160mesh	0.065	0.094
20mesh	0.30	0.970	180mesh	0.053	0.088
26mesh	0.28	0.696	200mesh	0.053	0.074
30mesh	0.25	0.596
