Factory Direct Pure Copper Knitted Wire Mesh Pure Copper Mesh

Ask Lasest Price
Brand Name :	YUDA
Model Number :	Brass / copper wire mesh
Price :	Reconsideration
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	200000 Square Meter/ day
Delivery Time :	3-10 day

Add to Cart

Product Details
Company Profile

Factory Direct Pure Copper Knitted Wire Mesh Pure Copper Mesh

Factory Direct Pure Copper Knitted Wire Mesh Pure Copper Mesh

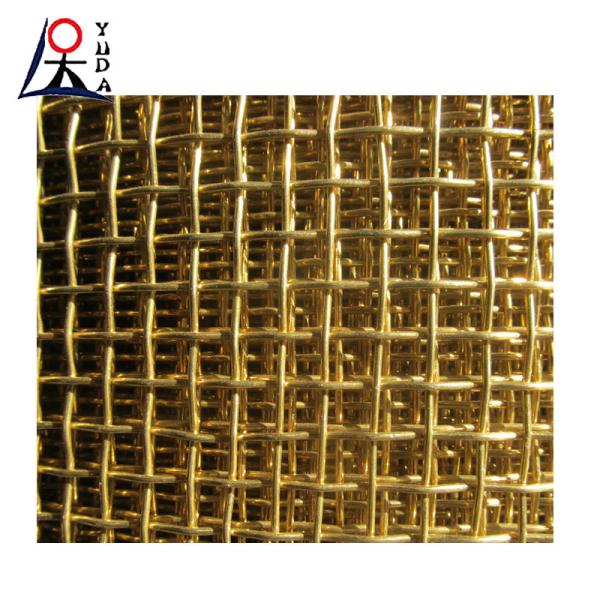

Brass wire mesh

Material:(Cu65%, Zn35%), (Cu80%, Zn20%),

Features: non-magnetic, low ductility, smooth surface, but its conductivity , The abrasion resistance and acid resistance are worse than the copper mesh. It has proper tensile and extensibility.

Mesh size: 1- 300
Wire diameter: 0.045-2㎜
Usages: screening various particles, paint filtering and shielding electromagnetic signal room shielding powder, porcelain clay and glass, porcelain printing, filtering liquids, gases, etc., making newsprint, printing paper and 60~70 mesh copper mesh.
90~ for typing paper 100 mesh copper net and so on.

Phosphor Bronze Wire Cloth

Material: phosphor copper wire (tin bronze mesh, 85%—90% copper, 5%—15% tin)
Features: non-magnetic, wear-resistant, good extensibility, etc.
Mesh Sizes: 6—400 mesh

Width: 0.6—1.5 meters

Weaving: plain weave, twill, etc.

Usages: Screen all kinds of particles, powder,
porcelain clay, glass, porcelain printing, filter liquid, gas.

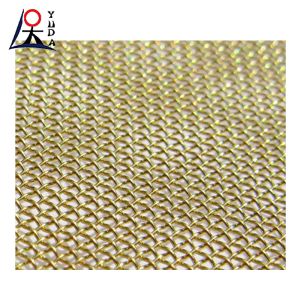

Pure Copper Wire Mesh

Material:99.95% pure cu wire

Features: non-magnetic, low ductility, smooth surface, but its conductivity , The abrasion resistance and acid resistance are
worse than the copper mesh. It has proper tensile and extensibility.
Mesh size: 1- 500 mesh
Wire diameter: 0.045-2㎜
Usages: EMI EMF RF Shielding and earthing in telecommunication joints and others in industry.

Mesh/inch	Wire diameter (mm)	Aperture (mm)	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90	40mesh	0.21	0.425
3mesh	1.60	6.866	50mesh	0.19	0.318
4mesh	1.20	5.15	60mesh	0.15	0.273
5mesh	0.91	4.17	70mesh	0.14	0.223
6mesh	0.80	3.433	80mesh	0.12	0.198
8mesh	0.60	2.575	90mesh	0.11	0.172
10mesh	0.55	1.99	100mesh	0.10	0.154
12mesh	0.50	1.616	120mesh	0.08	0.132
14mesh	0.45	1.326	140mesh	0.07	0.111
16mesh	0.40	1.188	150mesh	0.065	0.104
18mesh	0.35	1.060	160mesh	0.065	0.094
20mesh	0.30	0.970	180mesh	0.053	0.088
26mesh	0.28	0.696	200mesh	0.053	0.074
30mesh	0.25	0.596

Factory Direct Pure Copper Knitted Wire Mesh Pure Copper Mesh
