Faraday Cage Copper Wire Mesh Emf Shielding Copper Screen Mesh

Ask Lasest Price
Brand Name :	YUDA
Model Number :	Brass / copper wire mesh
Price :	Reconsideration
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	200000 Square Meter/ day
Delivery Time :	3-10 day

Add to Cart

Product Details
Company Profile

Faraday Cage Copper Wire Mesh Emf Shielding Copper Screen Mesh

Faraday Cage Copper Wire Mesh Emf Shielding Copper Screen Mesh

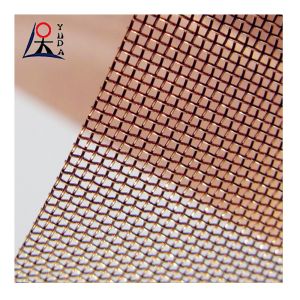

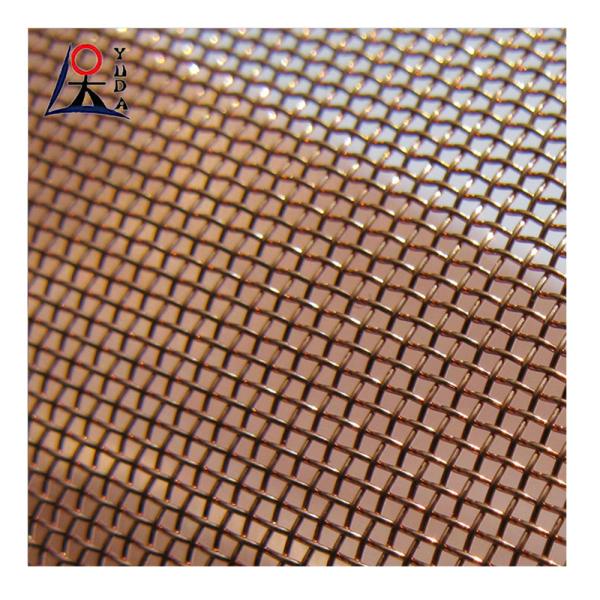

Woven copper mesh is similar to a cloth with wire threads woven at right angles. Our plain weave copper cloth is flimsy and easy to cut by common scissors. It has an unpolished surface.

Apart from high conductivity, nonmagnetic feature and corrosive resistance, copper cloth is also easy to be welded to form a rigidsheet with uniform opening size. With opening size from 0.006 inch to 0.075inch, copper cloth is very usable as a strainer or a sieve.

Material:(Cu65%, Zn35%), (Cu80%, Zn20%),

Features: non-magnetic, low ductility, smooth surface, but its conductivity , The abrasion resistance and acid resistance are worse than the copper mesh. It has proper tensile and extensibility.

Mesh size: 1- 300
Wire diameter: 0.045-2㎜
Usages: screening various particles, paint filtering and shielding electromagnetic signal room shielding powder, porcelain clay and glass, porcelain printing, filtering liquids, gases, etc., making newsprint, printing paper and 60~70 mesh copper mesh.
90~ for typing paper 100 mesh copper net and so on.

Copper Wire Mesh Applications:

Can be used as the shielding screen in the cable circuits,laboratories and computer rooms.

●Widely used in the power sector aerospace,information industry and for RFI and

EMI shielding.

●Can be used as the faraday cage.

●Can be installed onto buildings to insulate noise.

●Can be made to fiter discs for liquid,gas and solid filtering.

Mesh/inch	Wire diameter (mm)	Aperture (mm)	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90	40mesh	0.21	0.425
3mesh	1.60	6.866	50mesh	0.19	0.318
4mesh	1.20	5.15	60mesh	0.15	0.273
5mesh	0.91	4.17	70mesh	0.14	0.223
6mesh	0.80	3.433	80mesh	0.12	0.198
8mesh	0.60	2.575	90mesh	0.11	0.172
10mesh	0.55	1.99	100mesh	0.10	0.154
12mesh	0.50	1.616	120mesh	0.08	0.132
14mesh	0.45	1.326	140mesh	0.07	0.111
16mesh	0.40	1.188	150mesh	0.065	0.104
18mesh	0.35	1.060	160mesh	0.065	0.094
20mesh	0.30	0.970	180mesh	0.053	0.088
26mesh	0.28	0.696	200mesh	0.053	0.074
30mesh	0.25	0.596

Faraday Cage Copper Wire Mesh Emf Shielding Copper Screen Mesh
