Multi Functional Soundproof Sheets For Traffic Noise Barriers
Sound barriers can block the propagation path of noise waves,
significantly reducing the impact of noise on the surrounding
environment, such as reducing the interference of traffic noise on
residential areas.
Specifications
Highway Noise Barrier
a.Sound/noise barrier panel
b.Aluminum/glass fiber noise barrier
c.Manufact
noise barrier/road noise barriers

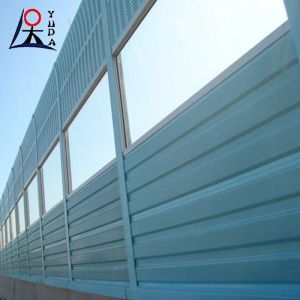

1.The picture of Sound Barrier
2. Sound Barrier detail
Standard height: 2,000mm, 2,500mm, 3,000mm and space between poles
1,000mm, 2,000mm and 2,500mm. it is available upon customer
request.Steel structure and sound insulation screen consist of the
sound barrier. The design already takes fully consideration of
express way and subway's wind load, transportation traffic's
striking security and all days' chemical proof in the open air
1.Material:steel sheet or aluminium sheet or PC Acrylic board.
2.Inner material:Glass wool
3.Sheets thickness:0.8-1mm,but we can also design as our clients
request.
4.Panel size:Width-500mm,Length2000mm is standard size ,the panel
can be longer ,but no more than 4meters.
Acrylic is now replacing tempered glass for niose reduction as it
outperforms it in so many ways. Acrylic
has exceptional light transmission and is lighter weight making
transportation, handling, fitting and
maintenance easier. It is highly transparent, which means that
drivers feel seamlessly connected to
the environment, rather than being cut off from it. It is highly
resistant to weathering, which means it
retains its good looks for longer. And, there are just so many
aesthetics that can be achieved easily by
custom designing and processing the acrylic sheets to suit any
particular installation.
Parts list | Items | Product description |
| Metal material | Galvanized sheet aluminum alloy sheet, color plate |
Transparent material | Glass, PC board, acrylic board, etc. |
Other material | High strength cement, cement wood chips, glass steel, etc. |
Hole pattern | Louver holes; common hole spacing 20*137, 20*182 |
Micropores; common 3 holes 3 distances, 5holes 2 distances, 2 holes
4 distances |
Aperture ratio | Not less than 25% |
Common size | 500*2000*80(100) mm,500*2000*120 mm,1000*2000*80(100) mm etc. |
surface concave groove | Can be customized according to drawings or customer requirements |
Surface treatment | Electrostatic powder coating, fluorocarbon spraying |
Color | Green 6029, blue5017, gray7042, white 9010, etc. color can be
selected according to the national standard color card |
| Material | Q235B |
Common size | 100*100*6*8 125*125*6.5*9 150*150*7*10 175*175*735*11 etc. |
Common height | 2m-6m up to12m |
Flange | Size tolerance less than 2mm, thickness tolerance less than 0.4mm |
Long hole:22*30 24*30 26*40 28*40; round hole:22 24 26 28 30 35 |
Surface treatment | Hot dip galvanizing-electrostatic powder coating, fluorocarbon
spraying |
Color | Green 6029, blue5017, gray7042, white 9010, etc. color can be
selected according to the national standard color card |
| Glass wool, rock wool, water-repellent, cloth, acoustic felt, foam
aluminum fiber etc. |
