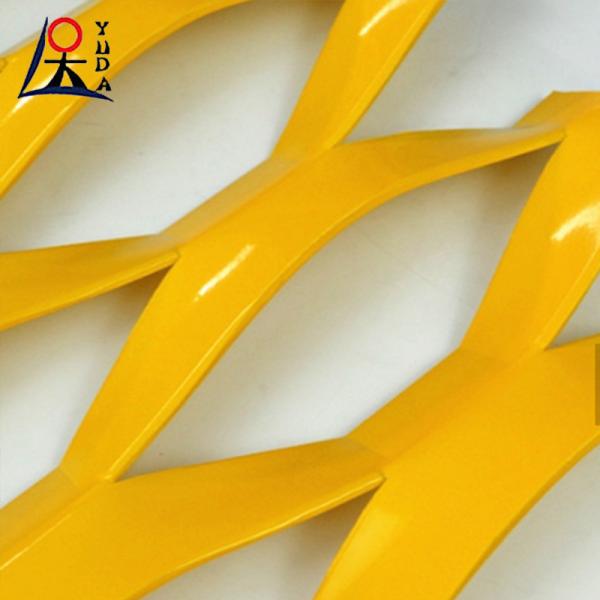

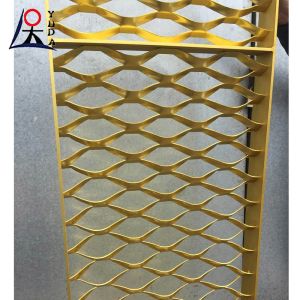

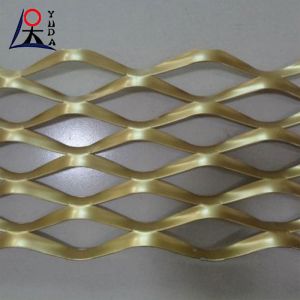

Aluminum Sheet Expanded Metal Mesh Diamond Shape Expandable Wire
Mesh
Expanded metal mesh comes in two forms: raised expanded metal and
flattened expanded metal. Raised expanded metal is also known as
standard expanded metal, it has diamond openings with slightly
raised surface.
Flattened expanded metal is manufactured by passing the standard
expanded sheet through a cold roll reducing mill, forming diamond
openings with flat surface.
Expanded metal mesh has a diverse range of properties, which makes
it a versatile material that can be used throughout a variety of
industries.Expanded metal mesh is manufactured with the use of an expanding
machine. Metal sheets or coils are fed through the machine to be
slit and stretched simultaneously. The result is a mesh product
with no joins or welds, formed from a process that produces minimum
waste.
Materials: aluminum plate, aluminum magnesium alloy plate.
Specification:
LWD:3mm~200mm;
SWD: 2mm~150mm;
Plate thickness:0.2mm~9mm;
Strand width:0.3-5mm
Range of roll length:1m~30m;
Roll width:10mm~1250mm.
Width: maximum up to 3M
Hole shape:Diamond hole ,square hole,scale hole
Hole type :Raised /standard hole,Flattened hole.
Surface treatment & tech: baking varnish, anodic oxidation,PVC /
powder coated,pvdf.
Characteristics: Light-duty, corrosion resistance,beautiful and
long service life.
Features:
Weight is light enough for outer wall hanging
Anti-corrosive
Rainstorm or isolation won`t hurt
Visibility and colorful
Used as decorative mesh for building outer wall ,radiator cover
mesh
Easily fabricated, finished, installed and formed
Application
expanded metal used with concrete in buildings and construction,
maintenance of equipment,
making of arts and crafts, covering screen for first class sound
case. Also fencing for super highway,
studio,highway.
| Specifications of expanded metal mesh |
| Tickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4 |
