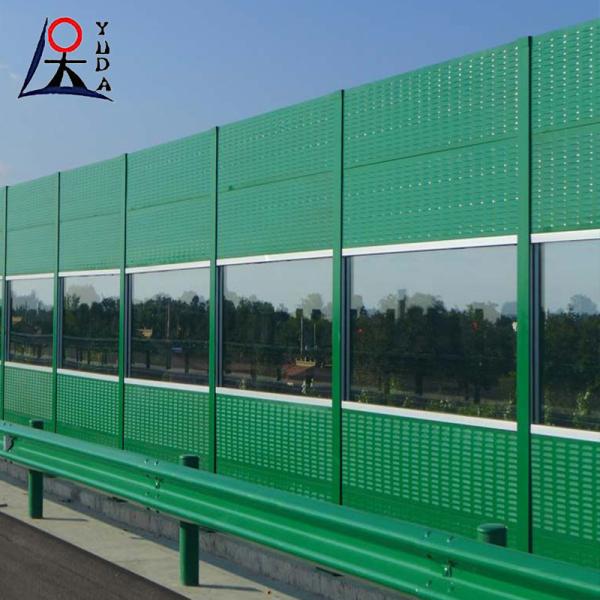

Road Noise Barrier Green Transparency Sound Barriers Fence Wall
Fence
In order to block the direct sound between the sound source and the
receiver, it inserts a
facility between the sound source and the receiver, so that there
is a significant additional
attenuation of the sound wave propagation, thus reducing the
influence of the noise in a
certain area of the receiver.
Acoustic barriers are mainly used outdoors. Along with the road
traffic noise pollution becomes
more and more serious, some countries adopt various kinds of
barriers to reduce the traffic noise.
In a building, a barrier can also be used to separate the workshop
from the office if sound
insulation is not required. The barrier is more convenient to
disassemble and move, and has
certain sound insulation effect, so it is widely used.
Between the sound source and the receiving point, a solid material
wall or wall with sufficient
surface density is inserted vertically to cause a significant
additional attenuation of the sound
wave in transmission. Such an "obstacle" is called the sound
barrier.
Parts list | Items | Product description |
| Noise barrier panel | Metal material | Galvanized sheet aluminum alloy sheet, color plate |
| Transparent material | Glass, PC board, acrylic board, etc. |
| Other material | High strength cement, cement wood chips, glass steel, etc. |
| Hole pattern | Louver holes; common hole spacing 20*137, 20*182 |
| Micropores; common 3 holes 3 distances, 5holes 2 distances, 2 holes 4 distances |
| Aperture ratio | Not less than 25% |
| Common size | 500*2000*80(100) mm,500*2000*120 mm 1000*2000*80(100) mm etc. |
| surface concave groove | Can be customized according to drawings or customer requirements |
| Surface treatment | Electrostatic powder coating, fluorocarbon spraying |
| Color | Green 6029, blue5017, gray7042, white 9010, etc. color can be
selected according to the national standard color card |
| H shape post | Material | Q235B |
| Common size | 100*100*6*8 125*125*6.5*9 150*150*7*10 175*175*735*11 etc. |
| Common height | 2m-6m up to12m |
| Flange | Size tolerance less than 2mm, thickness tolerance less than 0.4mm |
| Long hole:22*30 24*30 26*40 28*40; round hole:22 24 26 28 30 35 |
| Surface treatment | Hot dip galvanizing-electrostatic powder coating, fluorocarbon
spraying |
| Color | Green 6029, blue5017, gray7042, white 9010, etc. color can be
selected according to the national standard color card |
| Noise absorb material | Glass wool, rock wool, water-repellent, cloth, acoustic felt, foam
aluminum fiber etc. |
Sound Barrier Wall Technical features:
1.Impact strength: 850J/m ,the impact strength of solid PC sheets
is 250 times that of glass,
20-30 times of PMMA sheet
2.Light transmission: 80%-90% for different thickness of clear
color;
3.UV resistance:with our 50µm thickness UV layer ,the sheet can
filter 99% ultraviolet radiation in sunlight;
4.Specific gravity: 1.2 g/cm Coefficient of thermal expansion:
0.065 mm/?C;
5.Temperature: -40?C to 120?C;
6.Heat conductivity: 2.3-3.9 W/m2;
7.Tensile strength: >60N/mm2;
8.Flexural strength: 100N/mm2 ;
9.Modulus of elasticity: 2,400mPa;
10.Tensile street at break: >65mPa ;
11.Elongation at break: >100% ;
12.Specific heat: 1.16J/kg;
13.Heat deflection temperature: 140?C;
14.Soundproof index:60mm--29dB,80mm--31dB,100mm-32dB 120mm--34dB.
